600 Ltr QB Jacketed High Shear Mixer mounted on Load Cells
Manufacturer: QB Food Tech, Sweden.
Capacity: Approx 600 Ltr
Year of Manufacture: 2008
Year Refurbished: 2017
Construction: 316 Grade Stainless Steel
Serial Number: P4014
Jacket: Yes Jacketed & Insulated
Comes with Load Cells, Gantry, Control Panel.
Working Pressure: 3 bar
Test Pressure: 4.5 bar
Working Pressure: -0.45/+0.45 bar
Design Pressure: -0.45/+0.45 bar
High Shear Mixer:
QB Top Mounted
Motor Details: 11kw, 400v, 22Amps, 50Hz
Speed: Variable (Frequency Inverter)
Alfa Laval LKH-10/163 Pump
Serial Number: 104822
Overall Dimensions (L x W x H): 3200mm x 2200mm x 2750mm
Location: Lockerbie, Scotland.

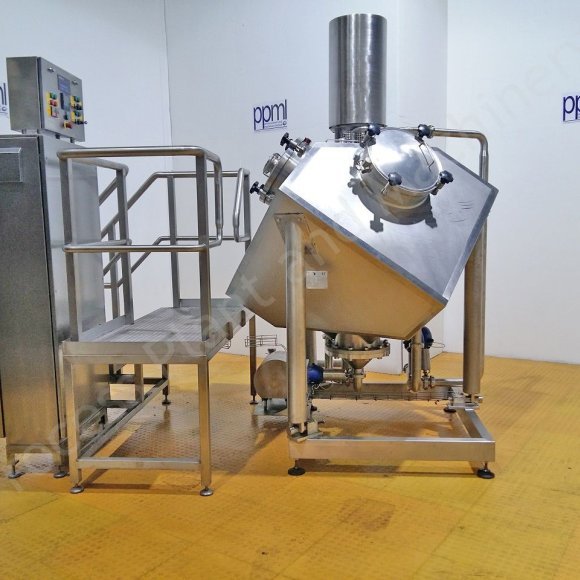

600 Ltr QB Stainless Steel Jacketed High Shear Mixer mounted on Load Cells.
This is an used & Refurbished 600 Ltr QB Stainless Steel Jacketed High Shear Mixer (Vacuum Rated), that consists of an 11kw QB Top Entry High Shear Mixer, Alfa Laval LKH pump, CIP connections, Control Panel & stainless steel gantry with steps, currently held in stock at Lockerbie, Scotland.
QB Mixer is a uique mixer for mixing powder and liquids. It allows you to be able to mix to a better quality faster with less energy. Its Jacketed & Cubical shape is its key that gives an effective flow pattern in the mixer.
